Crusher plants operate in highly demanding environments involving heavy shock loads, continuous vibration, dust exposure, and high torque transmission. In such applications, the reliability of the drive system directly affects plant productivity. One of the most critical components in this system is the Taper Lock Pulley.
Shree Ganesh Enterprise manufactures heavy-duty Taper Lock Pulleys engineered specifically for crusher plant drive systems to ensure consistent performance, mechanical stability, and long operational life.
Role of Taper Lock Pulley in Crusher Plants
In a typical crusher setup:
- An electric motor generates rotational power
- Power is transferred through V-belts
- The pulley transmits torque to the crusher shaft
The taper lock pulley ensures:
- Efficient torque transmission
- Proper belt alignment
- Shock absorption
- Stable rotational speed
Improper pulley selection can lead to:
- Belt slippage
- Shaft wear
- Excessive vibration
- Frequent breakdowns
- Reduced crushing efficiency
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Grade | FG 200 / FG 260 Cast Iron |
| Manufacturing Process | Precision Casting + CNC Machining |
| Groove Profiles | SPZ, SPA, SPB, SPC |
| Diameter Range | 100 mm to 1000 mm |
| Bush Compatibility | 1008 to 5050 Series |
| Balancing | Statical (Dynamic on request) |
| Surface Finish | Phosphated / Painted / Anti-rust Coated |
| Application | Jaw, Cone, Impact Crushers |
Key Design Features
Heavy Hub Construction
- Reinforced hub for high shock resistance
- Designed for sudden load variations
Precision Machined Grooves
- Accurate groove angle and depth
- Proper belt seating
- Reduced belt wear
Strong Taper Lock Bush System
- Uniform shaft gripping
- Easy mounting and dismantling
- Prevents shaft damage
Vibration-Resistant Structure
- Stable performance under continuous vibration
- Suitable for dusty industrial environments
Types of Taper Lock Pulleys for Crusher Plants
1. Single Groove Pulley
- Used in feeder systems
- Suitable for light to medium duty loads

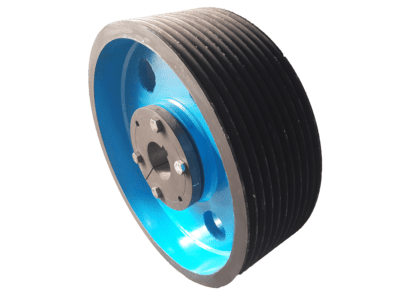

2. Multi Groove Pulley
- Used in jaw and cone crushers
- Suitable for high torque transmission
- Common in heavy-duty crushing operations
3. Large Diameter Drive Pulley
- Lower RPM applications
- Higher torque output requirements
4. Custom Heavy-Duty Pulley
- Manufactured as per drawing
- Designed for specialized crusher systems
Advantages in Crusher Applications
- Higher power transmission efficiency
- Reduced downtime due to quick bush replacement
- Longer belt life
- Improved crusher output stability
- Lower maintenance cost
- Strong resistance to dust and vibration
Material Strength and Durability
Crusher applications require pulleys that can withstand:
- Continuous load cycles
- High starting torque
- Sudden impact loads
- Harsh environmental conditions
Shree Manesh Enterprise ensures:
- Strict quality inspection
- Dimensional accuracy
- Proper balancing
- Load handling capability verification
Application Areas in Crusher Plants
- Jaw Crusher Drive System
- Cone Crusher Drive
- Impact Crusher
- Vibrating Screen System
- Conveyor Belt Drive
- Feeder Mechanism
Frequently Asked Questions (FAQs)
1. Why is a taper lock pulley preferred in crusher plants?
Because it provides strong shaft grip, easy installation, and reliable torque transmission under heavy load conditions.
2. What material is best for crusher duty pulleys?
FG 200 or FG 260 grade cast iron is commonly preferred due to its strength and wear resistance.
3. How do I select the correct pulley size?
Pulley size depends on motor RPM, required output RPM, torque requirement, and belt type. Proper technical calculation is necessary.
4. Can multi-groove pulleys improve performance?
Yes. Multi-groove pulleys distribute load across multiple belts, increasing torque capacity and reducing slippage.
5. Is dynamic balancing necessary?
Dynamic balancing is recommended for high-speed crusher applications to reduce vibration and extend bearing life.
Conclusion
A Taper Lock Pulley plays a vital role in ensuring efficient and uninterrupted crusher plant operations. Proper design, material selection, and precision machining are essential to withstand harsh working conditions.
Shree Ganesh Enterprise manufactures crusher-duty taper lock pulleys that are durable, accurately machined, vibration-resistant, and customizable according to plant requirements.
For technical assistance, customization, or bulk supply requirements, Shree Ganesh Enterprise is ready to support your crusher plant operations.
